10% Torispherical

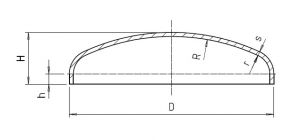

Decimal (torispherical) heads acc. DIN 28011
D = outside dimension
s = wall thickness before forming
r = inside knuckle radius (0,1D)
R = inside radius (R=D)
h = straight flange height(~3,5s)
H = total height (0,2D + h)
