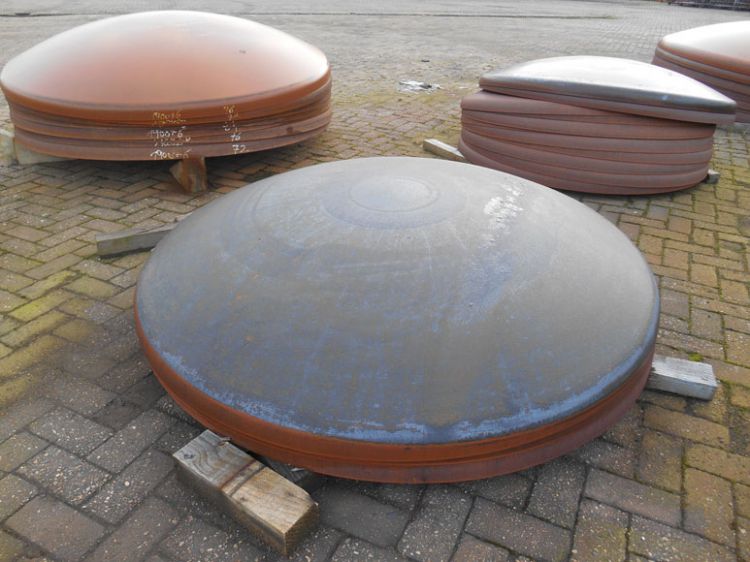

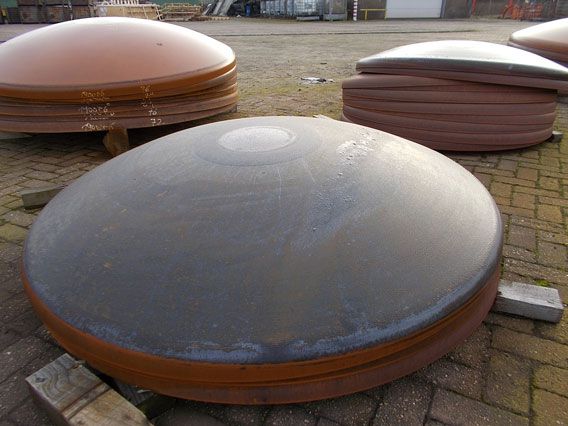

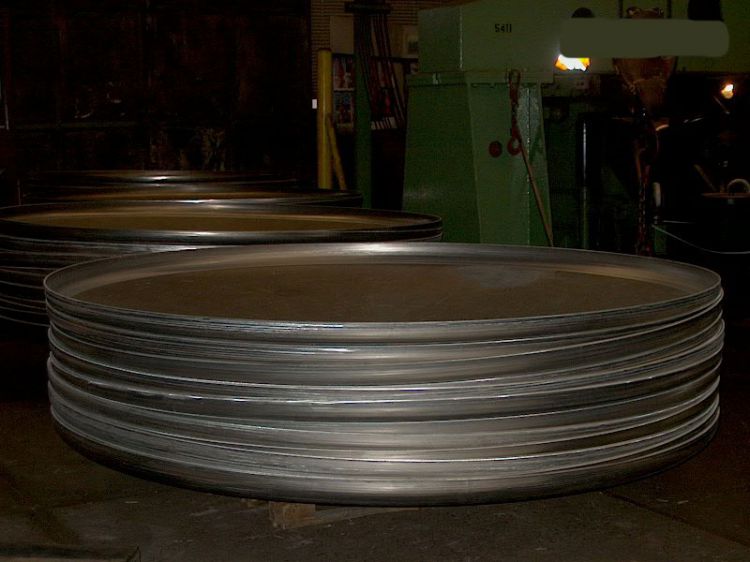

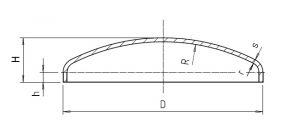

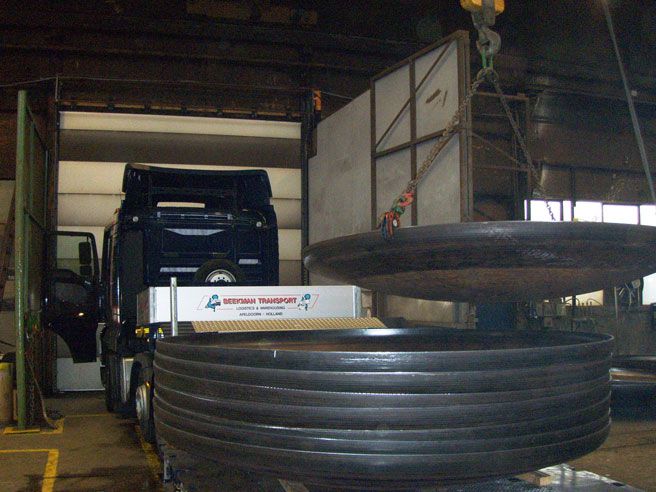

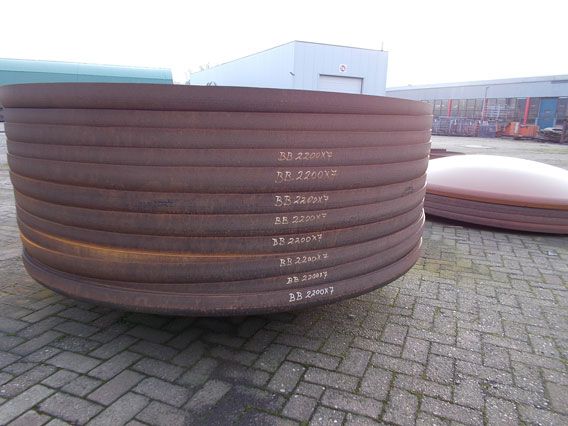

Storage tank head
D = outside dimension
s = wall thickness before forming
r = inside knuckle radius (50 mm)
R = inside radius (R=D)
h = Straight flange height (20-25 mm)
H = total height (0,13D + h)
