Low pressure heads

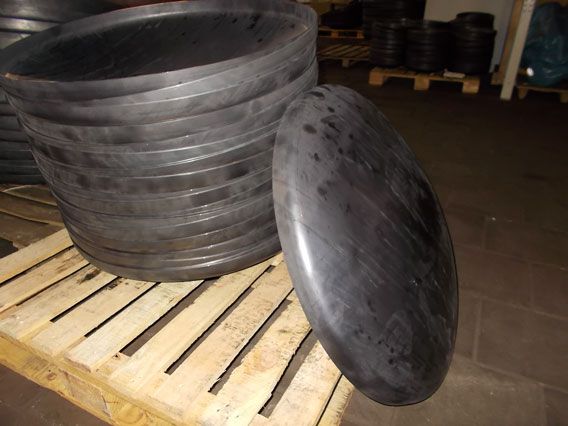

Decimal (torispherical) heads acc. DIN 28011
D = outside dimension
s = wall thickness before forming
r = inside knuckle radius (15-40 mm)
R = inside radius (R = D)
h = Straight flange height(20-25 mm)
H = total height(0,13D + h)
Decimal (torispherical) heads acc. DIN 28011
D = outside dimension
s = wall thickness before forming
r = inside knuckle radius (15-40 mm)
R = inside radius (R = D)
h = Straight flange height(20-25 mm)
H = total height(0,13D + h)
